Centrifugal blower VC-AS 710/N2/7,5 Es4

SKU:
906450.0712
Stock:

On backorder

Area of application: medium and low capacity and high pressure.
Type of blades: backward curved, negative.
Application: for pneumatic transport, using clean air. Can be used in foundries, food and chemical industries.

Additional information

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
VC-AS 710/N2/7,5 Es4

400-1800

9760-10190

132

7,5

2930

71

204 kg
ModelVC-AS 710/N2/7,5 Es4
Air delivery, m³/h

400-1800

Total pressure, Pa

9760-10190

Engine size

132

Power, kWt

7,5

Revolutions, rpm

2930

Noise, dB

71

Weight204 kg

Description

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
VC-AS 710/N2/7,5 Es4

400-1800

9760-10190

132

7,5

2930

71

204 kg
ModelVC-AS 710/N2/7,5 Es4
Air delivery, m³/h

400-1800

Total pressure, Pa

9760-10190

Engine size

132

Power, kWt

7,5

Revolutions, rpm

2930

Noise, dB

71

Weight204 kg
Fans features
L,м3/h 400 430 470 540 650 720 790 865 935 1080 1225 1370 1440 1620 1800
P,Pa 9760 9800 9840 9910 10000 10050 10090 10140 10170 10240 10280 10300 10290 10250 10190

Area of application: medium and low capacity and high pressure.
Type of blades: backward curved, negative.
Application: for pneumatic transport, using clean air. Can be used in foundries, food and chemical industries.
Temperature of the fluid: till 60°C for standard execution, for higher temperatures special execution of the blower is required.
Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc, the impeller is covered by epoxy grounding.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.
Series VC-AS manufactured by Italian producer, assembled by Aton service LTD..

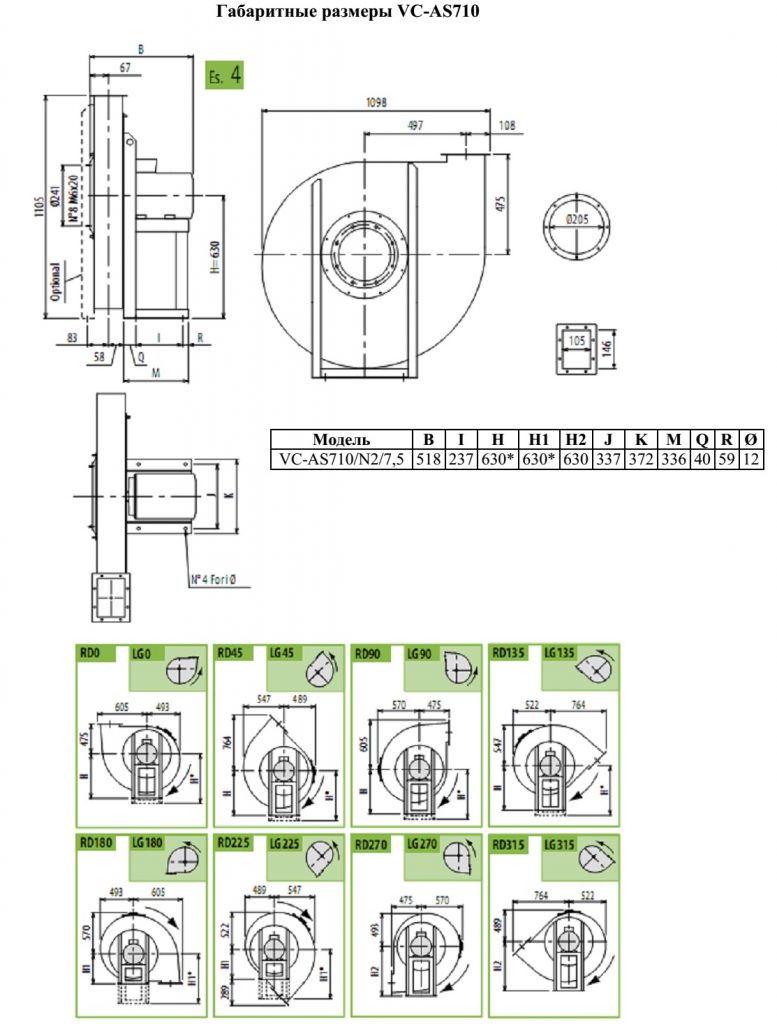

Unit of supply: blower execution Es 4 (direct drive, motor on supporting frame), electric motor IP55, class of isolation F.
Options and special executions: protection screen on the inlet, inspection door, drain plug etc.
