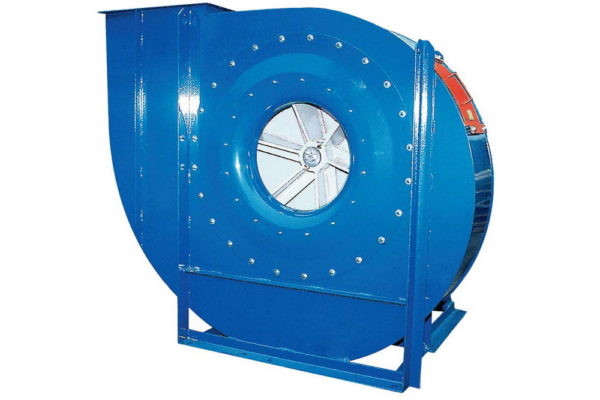

Centrifugal blower ZC-AS 1000/4/55 Es4

SKU:
906220.1001
Stock:

On backorder

Area of application: medium and low capacity, medium and high pressure.
Type of blades: open.
Application: pneumatic transport of solid particles mixed with air, woodchips and sawdust; can be used for filamentous materials, that can block the impeller of backward curved type construction.

Additional information

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
ZC-AS 1000/4/55 Es4

14400-36000

4400-3160

250

55

1480

97

1,011 kg
ModelZC-AS 1000/4/55 Es4
Air delivery, m³/h

14400-36000

Total pressure, Pa

4400-3160

Engine size

250

Power, kWt

55

Revolutions, rpm

1480

Noise, dB

97

Weight1,011 kg

Description

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
ZC-AS 1000/4/55 Es4

14400-36000

4400-3160

250

55

1480

97

1,011 kg
ModelZC-AS 1000/4/55 Es4
Air delivery, m³/h

14400-36000

Total pressure, Pa

4400-3160

Engine size

250

Power, kWt

55

Revolutions, rpm

1480

Noise, dB

97

Weight1,011 kg
Fans features
L,м3/h 14400 16200 18000 19800 25200 28800 32400 36000
P,Pa 4400 4350 4280 4180 3930 3750 3500 3160

Area of application: medium and low capacity, medium and high pressure.
Type of blades: open.
Application: pneumatic transport of solid particles mixed with air, woodchips and sawdust; can be used for filamentous materials, that can block the impeller of backward curved type construction.
Temperature of the fluid: till 60°C for standard execution, for higher temperatures special execution of the blower is required.
Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc, the impeller is covered by epoxy grounding.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.
Series ZC-AS manufactured by Italian producer, assembled by Aton service LTD.
Unit of supply: blower execution Es 4 (direct drive, motor on supporting frame), electric motor IP55, class of isolation F.
Options and special executions: inspection door, drain plug, spark-and dustproof execution, wear-resistant execution, execution Es12 (V-belt drive), execution for high temperatures, sparkproof and explosion proof execution (АTEX 3GD, АTEX 2G, АTEX 2D), etc.

Options

Photo SKU Product name Product description Price
906000.0000.20 PI Inspection door 30.00
906000.0000.10 TS Drain plug 20.00
906220.1000.10 ZC CE 1000 890.00
906220.1000.11 ZC HE 1000 1,440.00
