Area of application: medium and low capacity, medium and high pressure.
Type of blades: forwardcurved blades, type “sirocco”.
Application: for ventilation in the productions and for general ventilation, everywhere where the movement of clean, slightly dusty air, smokes is demanded.
| Model | Air delivery, m³/h | Total pressure, Pa | Engine size | Power, kWt | Revolutions, rpm | Noise, dB | Weight |
|---|---|---|---|---|---|---|---|
| MM-AS251/1,5 Es5 | 500-1750 | 1560-1600 | 90 | 1,5 | 2820 | 88 | 31 kg |
| Model | MM-AS251/1,5 Es5 |
|---|---|
| Air delivery, m³/h | 500-1750 |
| Total pressure, Pa | 1560-1600 |
| Engine size | 90 |
| Power, kWt | 1,5 |
| Revolutions, rpm | 2820 |
| Noise, dB | 88 |
| Weight | 31 kg |
| Model | Air delivery, m³/h | Total pressure, Pa | Engine size | Power, kWt | Revolutions, rpm | Noise, dB | Weight |
|---|---|---|---|---|---|---|---|
| MM-AS251/1,5 Es5 | 500-1750 | 1560-1600 | 90 | 1,5 | 2820 | 88 | 31 kg |
| Model | MM-AS251/1,5 Es5 |
|---|---|
| Air delivery, m³/h | 500-1750 |
| Total pressure, Pa | 1560-1600 |
| Engine size | 90 |
| Power, kWt | 1,5 |
| Revolutions, rpm | 2820 |
| Noise, dB | 88 |
| Weight | 31 kg |
| Fans features | |||||
| L,м3/h | 400 | 800 | 1200 | 1600 | 2000 |
| P,Pa | 1650 | 1580 | 1620 | 1620 | 1550 |
Area of application: medium and low capacity, medium and high pressure.
Type of blades: forwardcurved blades, type “sirocco”.
Application: for ventilation in the productions and for general ventilation, everywhere where the movement of clean, slightly dusty air, smokes is demanded.
Temperature of the fluid: till 80°C for standard execution, for higher temperatures special execution of the blower is required.
Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.
Series MM-AS manufactured by Italian producer, assembled by Aton service LTD.

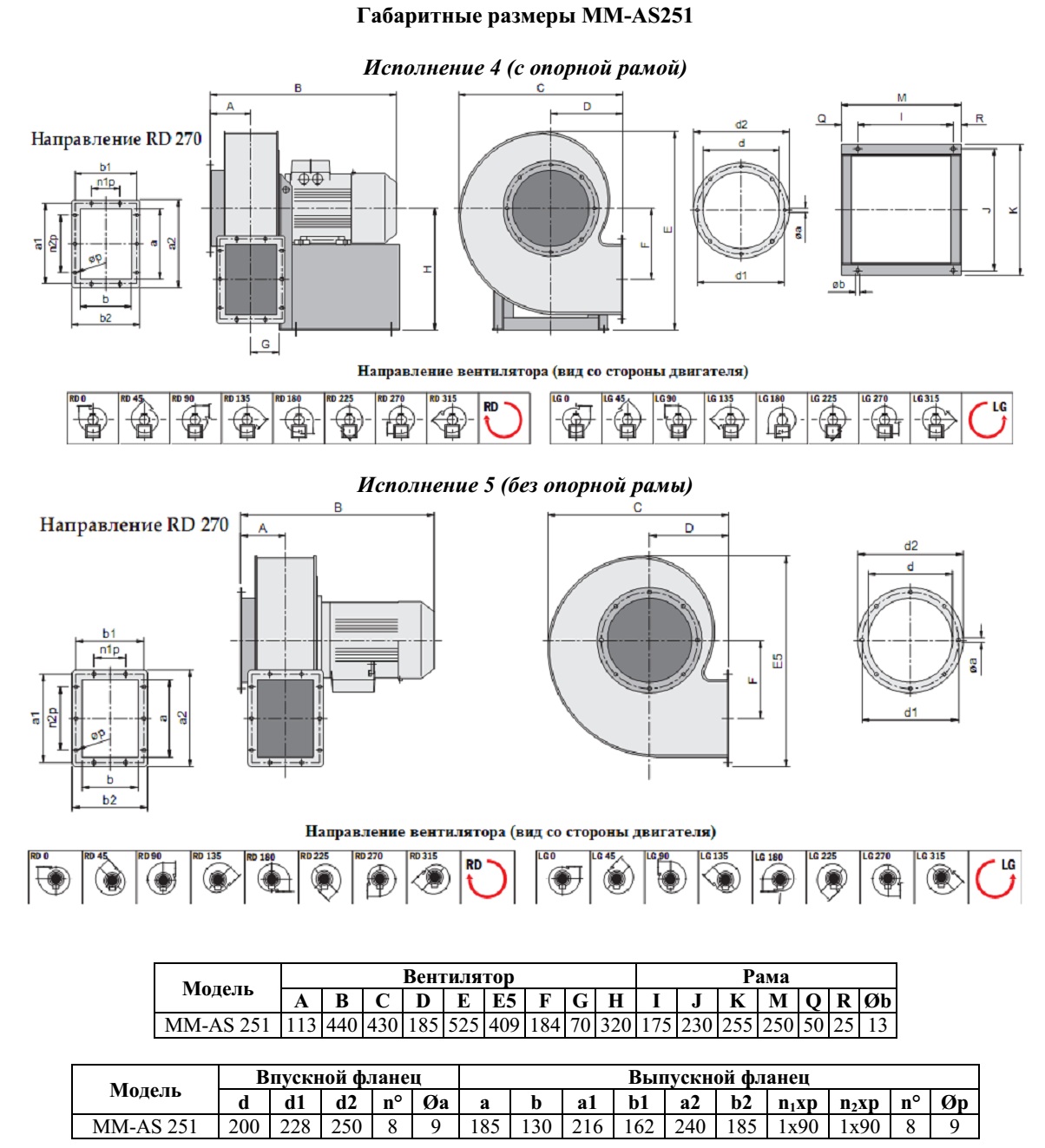

Unit of supply: blower execution Es4 (direct drive, motor on the supporting frame), execution Es 5 (direct drive, without supporting frame), electric motor IP55, class of isolation F.
Options and special executions: protection screen, drain plug, execution for high temperatures etc.
