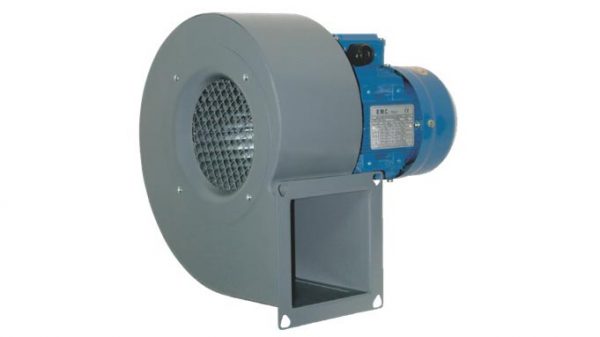

Centrifugal blower MN-AS-602

SKU:
906390.0602
Stock:

On backorder

270.00

Area of application: low capacity and low pressure.
Type of blades: forwardcurved blades, type “sirocco”.
Application: for clean and slightly dusty air, widely used for cooling of electric equipment, generators, extruders, lamps, motors, for air supply into solidfuel boilers etc.

Additional information

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
MN-AS-602

790-1800

1220-1500

80

1.1

2800

83

16 kg
ModelMN-AS-602
Air delivery, m³/h

790-1800

Total pressure, Pa

1220-1500

Engine size

80

Power, kWt

1.1

Revolutions, rpm

2800

Noise, dB

83

Weight16 kg

Description

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
MN-AS-602

790-1800

1220-1500

80

1.1

2800

83

16 kg
ModelMN-AS-602
Air delivery, m³/h

790-1800

Total pressure, Pa

1220-1500

Engine size

80

Power, kWt

1.1

Revolutions, rpm

2800

Noise, dB

83

Weight16 kg
Fans features
L,м3/h 400 600 800 1000 1200 1400 1600 1800
P,Pa 1250 1220 1250 1280 1320 1380 1420 1440

Area of application: low capacity and low pressure.
Type of blades: forwardcurved blades, type “sirocco”.
Application: for clean and slightly dusty air, widely used for cooling of electric equipment, generators, extruders, lamps, motors, for air supply into solidfuel boilers etc.
Temperature of the fluid: till 80°C for standard execution, for higher temperatures special execution of the blower is required.

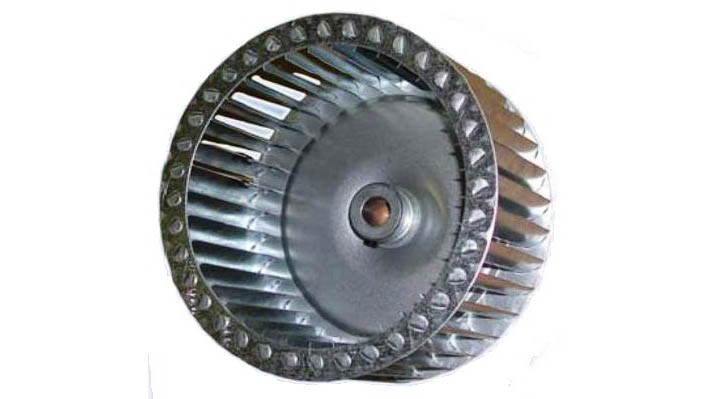

Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc, the impeller is made of galvanised steel.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.
Series AS-N manufactured by Italian producer, assembled by Aton service LTD.
Unit of supply: blower execution Es 5 (direct drive, without supporting frame),protection screen on the inlet, electric motor IP55, class of isolation F.
Options and special executions: execution Es4 (direct drive, motor on the supporting frame), execution for high temperatures, sparkproof execution, etc.
