Filtering plant Mobil AS 8

SKU:
801100.0008
Stock:

On backorder

Filtering unit Mobil AS 8 is a plant, working on cartridge filters with automatic cleaning system by compressed air with 4 containers. Air delivery 8000 m³/h.

Additional information

ModelAir delivery, m³/hTotal pressure, PaPower, kWtFiltering surface, m²Storage capacity, m³Noise, dBA, mmB, mmH, mm
Mobil AS 8

8000

1800

7.5

80

0.8/1.0

78

3,1121,4002,145
ModelMobil AS 8
Air delivery, m³/h

8000

Total pressure, Pa

1800

Power, kWt

7.5

Filtering surface, m²

80

Storage capacity, m³

0.8/1.0

Noise, dB

78

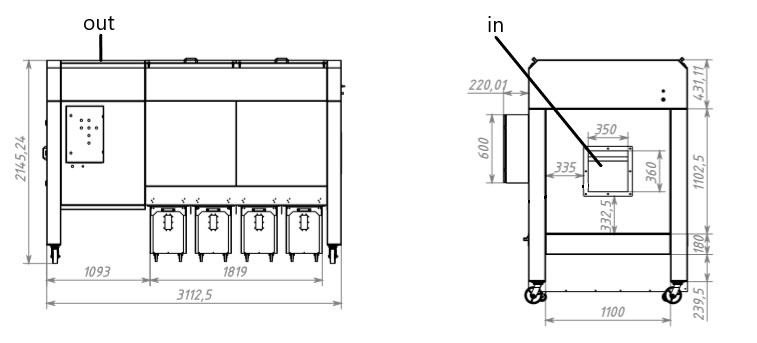

A, mm3,112
B, mm1,400
H, mm2,145

Description

ModelAir delivery, m³/hTotal pressure, PaPower, kWtFiltering surface, m²Storage capacity, m³Noise, dBA, mmB, mmH, mm
Mobil AS 8

8000

1800

7.5

80

0.8/1.0

78

3,1121,4002,145
ModelMobil AS 8
Air delivery, m³/h

8000

Total pressure, Pa

1800

Power, kWt

7.5

Filtering surface, m²

80

Storage capacity, m³

0.8/1.0

Noise, dB

78

A, mm3,112
B, mm1,400
H, mm2,145

Filtering plant Mobil AS 8 is a plant, working on cartridge filters with automatic cleaning system by compressed air with 4 containers. Air delivery – 8000 m³/h. Filtering plant is mobile and easy to manage, because of four wheels, two of them are swivel. Each filter is equipped with individual valve for compressed air supply.

Principle of operation

The dusty air is drawn into the filtering compartment of the Mobil AS 8 using a vacuum fan. The large and medium fractions of dust settle in the settling chamber under gravity and enter the storing compartment for the filtered material, while lighter particles, suspended in the air, are filtered using an antistatic cartridge filter. The purified air returns to the workshop.
Filter cartridges are cleaned using a pulse-jet counterflow of the compressed air. The flow of compressed air under high pressure blows the filter cartridge in the opposite direction – against the filtering flow of dusty air, thereby bringing the dust down from the filters. Filtered dust gradually accumulates in the waste collection containers and requires periodic monitoring and discharge.
To start-up Mobil AS 8, you must press the green button on the control panel. In order to stop the filtering plant, press the red button on the control panel.
The plant is equipped with a blower with high suction power, high efficiency, located in a soundproof casing. Mobil AS 8 consists of a filter compartment with a pulse-jet system for cleaning of filter elements with compressed air, a settling chamber and a compartment for collection of filtered material.

Certificates and declarations.

Filtering plant Mobil AS 8 is manufactured in accordance with the norms, established by the Aton Service LTD Quality Management System in accordance with the requirements of ISO 9001: 2015.
It complies with the requirements of DSTU EN 60204-l: 2015, DSTU EN 61000-6-2: 2015, DSTU EN 61000-6-4: 2016.
Operating manual must be read and understood and must be followed by the person, who installs, operates and maintains the installation.

Link:

https://aton-service.com.ua/wp-content/uploads/2019/09/Manual-Mobil-AS-2.0-ru.pdf

FORBIDDEN!

  1. To use a filtering plant for filtering of the air in which there are paint, large and long fractions of sawdust, rags, metal objects or any other inclusions that can damage the blower, filters and plant.
  2. To remove the filters and dust storage container for maintenance or for repair purposes when the power is not turned off on the control panel.
  3. To carry out any interventions in the plant during its operation.


Blower
RM-AS 450/2/7,5 Es4
Area of application: high capacity and medium pressure.
Type of blades: backward curved.
Application: dust extraction blower, suction and transportation of very dusty air, containing granular materials, wood chips and sawdust, excluding filamentous materials.
Temperature of the fluid: till 60°C for standard execution, for higher temperatures special execution of the blower is required.
Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc, the impeller is covered by epoxy grounding.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.


Antistatic cartridge filter

The cartridge filter C2.1000.10.ANT is capable of collecting finer dust fractions than sleeve filters and is designed to purify air from fine dry particles that do not stick together. Filter regeneration is carried out by compressed air in automatic mode. Filters are made in Italy, comply with EU quality standards.
Material – antistatic polyester, material density – 260 g / m2.
The cleaning efficiency is 100% for particles larger than 5 micrometers.
Advantages of a cartridge filter from company Aton Service LTD (production – Italy):

1) High cleaning efficiency;
2) Placing a large area of filtration in one filter due to the corrugation of the filter material;
3) It has antistatic properties according to DIN 54345-5, has a ground loop;
4) Wear resistance;
5) Long service life – 2-3 years.
6) Cartridge filters are BIA-certified filter medium in accordance with USGC class.

Made of 100% polyester, cartridge filters will improve the level of air purification and the efficiency of the machines in the workshop. Can be installed in a couple of minutes.


INITIAL EFFICIENTY



Material 100 % polyester spunbond aluminized, silver
Grammage 235 g/m2
Thickness 0,59 mm
Max. tensile strength 690 N/5 cm
Elongation at max. strength 30 %
Air permeability 180 l/m2 sec (200 Pa)
Max. temperature 140° C.




PRESSURE TEST



Bia certificate USGC (M)
Surface resistivity < 106 Ohms (DIN 54345-5)
Contaminant ISO Fine (200 mg/m3)
Air flow 200 m3/m2 x h
Face velocity 0,056 m/sec
Test Area 100 cm2






BIA-test

The filter should not skip anything – we often hear this statement. Many people think that the filter holds 100% of the dust. In principle, a filter is a separation device; this means that it separates the proposed material for filtration. The isolated product is returned back to the production process or to residual disposal. Particles, contained in the air, that go out are called residual dust. Residual dust is indicated in mg / m³.






EN 1822

The standard applies to high-performance and very high-performance ultra-low penetration air filters used in the field of ventilation and air conditioning, as well as in technological processes such as cleanroom technology or the pharmaceutical industry. It establishes a procedure for determining effectiveness based on a method that calculates fractions using a test liquid aerosol (or alternatively solid), and can classify these filters in a normalized way depending on their effectiveness.






DIN 54345-5

In certain places, dust friction can lead to the buildup of electrostatic charges with the risk of sparking. Thus, in the presence of flammable or explosive dust the antistatic filter elements must be used to allow charges to be carried along filter bags and pockets.
The electrical resistance of the filter material of the antistatic cartridge filter, according to the measurements in compliance with DIN 54345, section 5 is <106 Om / m2.


Filter cleaning system

Cleaning of the cartridge filters with compressed air allows the filters to be used for a long time without loss of suction efficiency. Each filter is equipped with an individual valve for supply of the compressed air, which allows each filter to be properly regenerated. Impulse valves are explosion-proof, made in Italy, comply with EU quality standards, certified by ATEX, category 22.
Filter cartridges are cleaned using a pulse-jet counterflow of the compressed air. The flow of compressed air under high pressure blows the filter cartridge in the opposite direction – against the filtering flow of dusty air.
In order to optimize the consumption of compressed air, a special device has been installed that controls the duration of the flow and the intervals between filter cleaning cycles.
For operation of the filter cleaning system a dry, purified compressed air must be used. Air must comply with class 2 of ISO 8573-1.
Working pressure – 0.5-0.7 MPa.
Connection of the compressed air to the plant is possible by means of quickly removable socket for the pneumatic items of G 3/8 inch (mother).


Fire extinguishing system

The filter removes dust that occurs during the production process and accumulates it in the hopper or dust bags (if supplied).
The dust, that is removed, is flammable (e.g. wood, plastic, cereal, etc.), and if it comes in contact with a source of sparks (e.g. fire or sparks), it may ignite.
One of the most effective means of fighting with the fire is a fire-extinguishing system for the on-time elimination of the fire. The fire-extinguishing system is one of the best means of preventing fire at its initial stage.


Control panel

Designed to enable and disable all systems and motors installed in the filtering plant, as well as electrical protection of the motors (by current, phase distortion). The control panel allows you to turn the fan on and off according to a predetermined algorithm, to control the cleaning system; the cleaning cycle is provided by an economizer that automatically controls the solenoid valve, cleaning one filter at a time. If the control unit includes Unit of energy saving ESU 7.5, then the control algorithm allows you to adjust smoothly the fan speed depending on the required power (number of connected machines, signal from the pressure sensor). That helps to save the electric power consumption. The economy value can reach about 70-80% in the case of 10-20% load of the machines. The control panel is equipped with a quick connector for tapping that allows you to connect the filtering plant without special knowledge.




The settling chamber and the collection compartment for the filtered material

The settling chamber provides settling of large fractions by reducing the flow rate and gravity force. The patented settling chamber ensures maximum protection of the filter elements from sharp and hot particles, reduction of the dust load of the filter elements, and also to reduce pressure losses in the filtering plant.
The collection compartment for filtered material includes 4 quick-detachable metal containers on wheels. They are convenient for transporting and unloading of the filtered material. The volume of each container is 30 liters.





Options

Photo SKU Product name Product description Price
801100.0008.08 BS Mobil 8 Hopper with screw 3,520.00
813020.0000.06 DF Filter contamination sensor 70.00
813020.0000.08 DRS Pressure control sensor 160.00
813010.0000.07 ESU 7,5 Unit of energy saving 7.5 kWt 1,490.00
830000.0000. 03 R400 Plug for connection (up to 7.5 kW) 12.00

Reviews

There are no reviews yet.

Be the first to review “Mobil AS 8”

Your email address will not be published. Required fields are marked *

Supplies

Photo SKU Product name Product description Price
830000.0000. 22 C2.1000.10.ANT Antistatic cartridge filter 180.00
