Centrifugal blower RH-AS 560/2R/22 Es4

Code:
906110.0561
Stock:

On backorder

3 700,00

Area of application: medium and low capacity and high pressure.

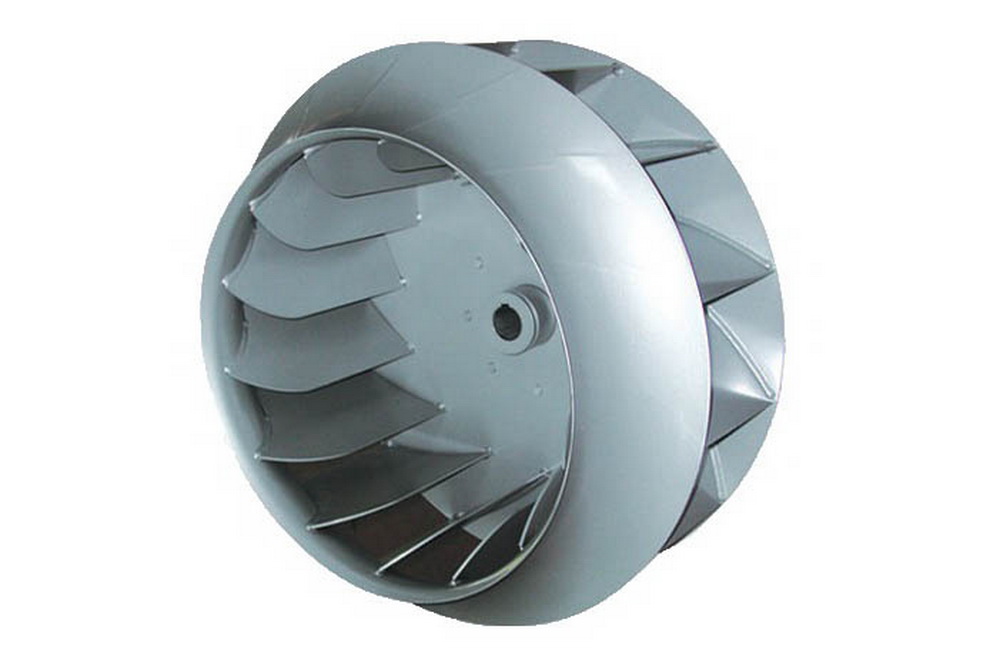

Type of blades: backward curved, negative.
Application: for pneumatic transport, using clean air. Can be used in foundries, food and chemical industries.

Specifications

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
RH-AS 560/2R/22 Es4

7200-19800

4690-2970

180

22

2960

77

273 kg
ModelRH-AS 560/2R/22 Es4
Air delivery, m³/h

7200-19800

Total pressure, Pa

4690-2970

Engine size

180

Power, kWt

22

Revolutions, rpm

2960

Noise, dB

77

Weight273 kg

Description

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
RH-AS 560/2R/22 Es4

7200-19800

4690-2970

180

22

2960

77

273 kg
ModelRH-AS 560/2R/22 Es4
Air delivery, m³/h

7200-19800

Total pressure, Pa

4690-2970

Engine size

180

Power, kWt

22

Revolutions, rpm

2960

Noise, dB

77

Weight273 kg
Fans features
L,м3/h 7200 7920 9000 10080 10800 12600 14400 16200 18000 19800
P,Pa 4690 4670 4590 4480 4390 4140 3880 3610 3320 2970

Area of application: medium and low capacity and high pressure.
Type of blades: backward curved, negative.
Application: for pneumatic transport, using clean air. Can be used in foundries, food and chemical industries.
Temperature of the fluid: till 60°C for standard execution, for higher temperatures special execution of the blower is required.
Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc, the impeller is covered by epoxy grounding.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.
Series VP-AS manufactured by Italian producer, assembled by Aton service LTD..
Unit of supply: blower execution Es 4 (direct drive, motor on supporting frame), electric motor IP55, class of isolation F.
Options and special executions: protection screen on the inlet, inspection door, drain plug etc.

Options

Photo Code Product name Product description Price
906000.0000.20 PI Inspection door 15,00
906110.0561.01 RH AS 560/2R/22 Es4 0,00
906000.0000.10 TS Drain plug 10,00
