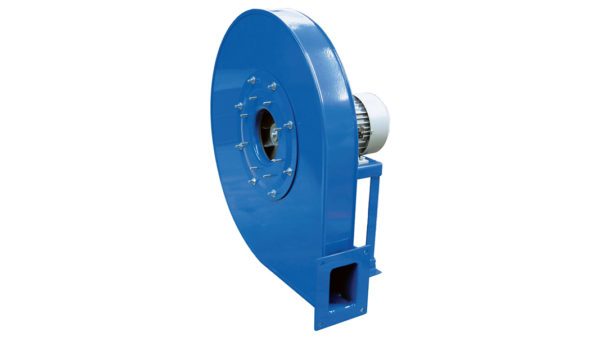

Area of application: medium and low capacity and high pressure.
Type of blades: backward curved, negative.
Application: for pneumatic transport, using clean air. Can be used in foundries, food and chemical industries.
| Model | Air delivery, m³/h | Total pressure, Pa | Engine size | Power, kWt | Revolutions, rpm | Noise, dB | Weight |
|---|---|---|---|---|---|---|---|
| VP-AS 400/N2/0,55 Es4 | 285-470 | 3000-3080 | 71 | 0.55 | 2845 | 56 | 51 kg |
| Model | VP-AS 400/N2/0,55 Es4 |
|---|---|
| Air delivery, m³/h | 285-470 |
| Total pressure, Pa | 3000-3080 |
| Engine size | 71 |
| Power, kWt | 0.55 |
| Revolutions, rpm | 2845 |
| Noise, dB | 56 |
| Weight | 51 kg |
| Model | Air delivery, m³/h | Total pressure, Pa | Engine size | Power, kWt | Revolutions, rpm | Noise, dB | Weight |
|---|---|---|---|---|---|---|---|
| VP-AS 400/N2/0,55 Es4 | 285-470 | 3000-3080 | 71 | 0.55 | 2845 | 56 | 51 kg |
| Model | VP-AS 400/N2/0,55 Es4 |
|---|---|
| Air delivery, m³/h | 285-470 |
| Total pressure, Pa | 3000-3080 |
| Engine size | 71 |
| Power, kWt | 0.55 |
| Revolutions, rpm | 2845 |
| Noise, dB | 56 |
| Weight | 51 kg |
| Fans features | |||||
| L,м3/h | 285 | 360 | 400 | 430 | 470 |
| P,Pa | 3000 | 3080 | 3100 | 3100 | 3080 |
Area of application: medium and low capacity and high pressure.
Type of blades: backward curved, negative.
Application: for pneumatic transport, using clean air. Can be used in foundries, food and chemical industries.
Temperature of the fluid: till 60°C for standard execution, for higher temperatures special execution of the blower is required.
Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc, the impeller is covered by epoxy grounding.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.
Series VP-AS manufactured by Italian producer, assembled by Aton service LTD..
Unit of supply: blower execution Es 4 (direct drive, motor on supporting frame), electric motor IP55, class of isolation F.
Options and special executions: protection screen on the inlet, inspection door, drain plug etc.
