Centrifugal blower ZB-AS 450/P2/4 Es4

SKU:
906340.0451
Stock:

On backorder

Area of application: medium and low capacity, medium and high pressure.
Type of blades: open.
Application: pneumatic transport of solid particles mixed with air, woodchips and sawdust; can be used for filamentous materials, that can block the impeller of backward curved type construction.

Additional information

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
ZB-AS 450/P2/4 Es4

650-2160

3720-3520

112

4

2920

74

78 kg
ModelZB-AS 450/P2/4 Es4
Air delivery, m³/h

650-2160

Total pressure, Pa

3720-3520

Engine size

112

Power, kWt

4

Revolutions, rpm

2920

Noise, dB

74

Weight78 kg

Description

ModelAir delivery, m³/hTotal pressure, PaEngine sizePower, kWtRevolutions, rpmNoise, dBWeight
ZB-AS 450/P2/4 Es4

650-2160

3720-3520

112

4

2920

74

78 kg
ModelZB-AS 450/P2/4 Es4
Air delivery, m³/h

650-2160

Total pressure, Pa

3720-3520

Engine size

112

Power, kWt

4

Revolutions, rpm

2920

Noise, dB

74

Weight78 kg
Fans features
L,м3/h 650 720 790 865 935 1080 1225 1370 1440 1620 1800 2160
P,Pa 3720 3720 3700 3700 3680 3680 3670 3670 3670 3620 3570 3520

Area of application: medium and low capacity, medium and high pressure.
Type of blades: open.
Application: pneumatic transport of solid particles mixed with air, woodchips and sawdust; can be used for filamentous materials, that can block the impeller of backward curved type construction.
Temperature of the fluid: till 60°C for standard execution, for higher temperatures special execution of the blower is required.
Construction’s specification: stable construction made of sheet metal. Blower is covered by powder paint, baked at 200°C with the average thickness of соating 70 mc, the impeller is covered by epoxy grounding.
Blower is statically and dynamically balanced.
Impeller and motor produced in Italy, correspond to quality norms of EU.
Series ZB-AS manufactured by Italian producer, assembled by Aton service LTD.

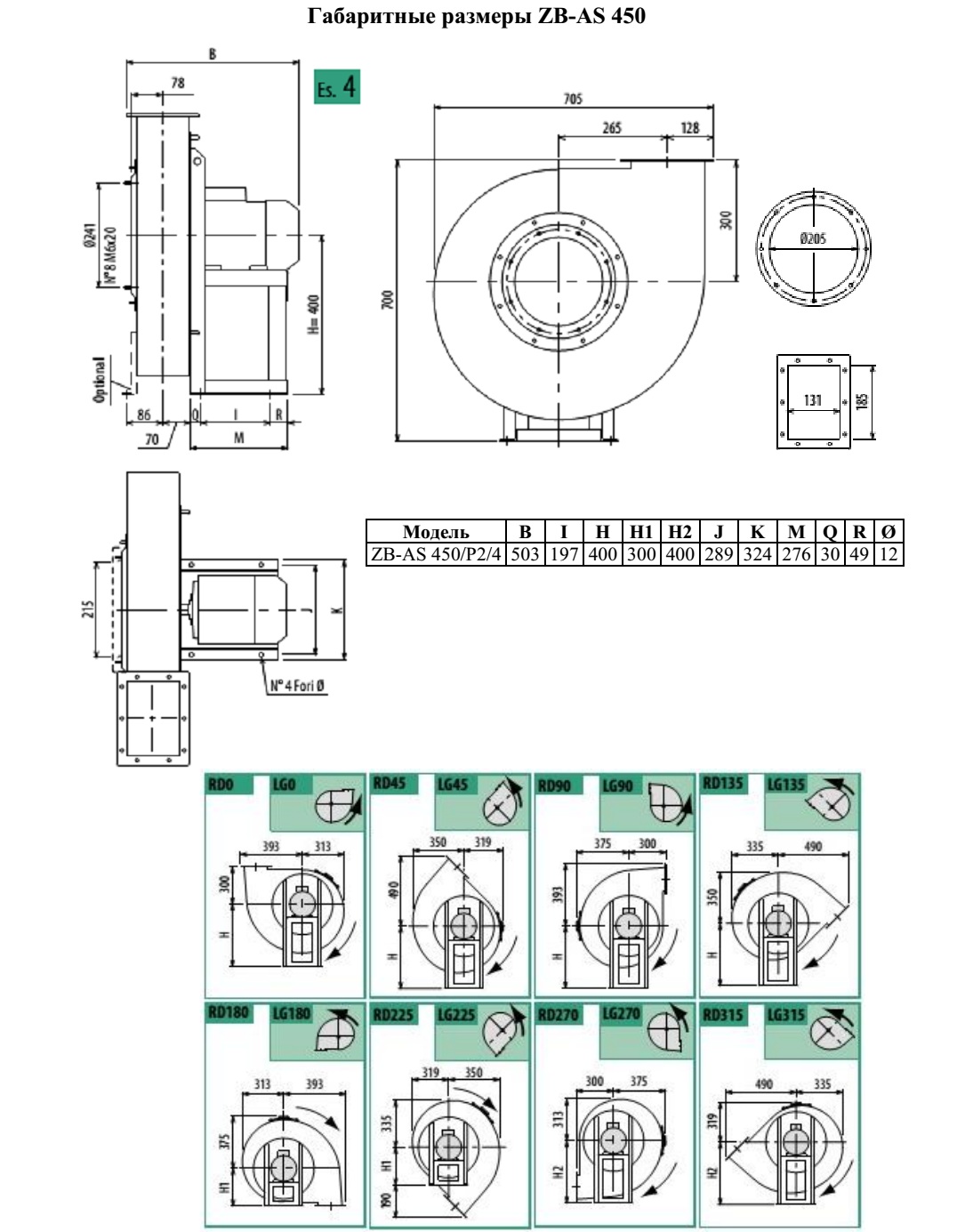

Unit of supply: blower execution Es 4 (direct drive, motor on supporting frame), electric motor IP55, class of isolation F.
Options and special executions: inspection door, drain plug, spark-and dustproof execution, wear-resistant execution, execution Es12 (V-belt drive), execution for high temperatures, sparkproof and explosion proof execution (АTEX 3GD, АTEX 2G, АTEX 2D), etc.

Options

Photo SKU Product name Product description Price
906000.0000.20 PI Inspection door 30.00
906000.0000.10 TS Drain plug 20.00
906340.0450.10 ZB CE 450 189.00
906340.0450.11 ZB HE450 576.00
