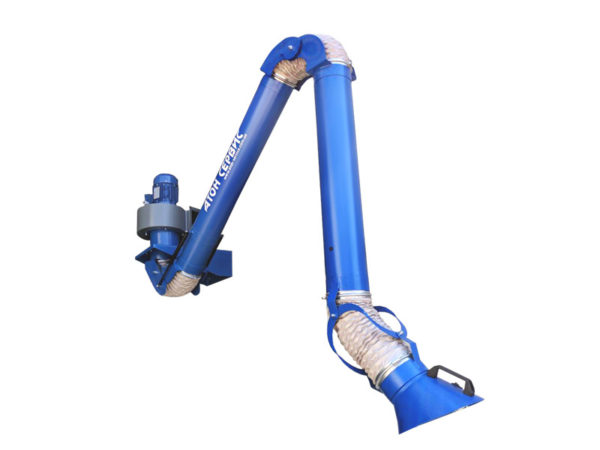

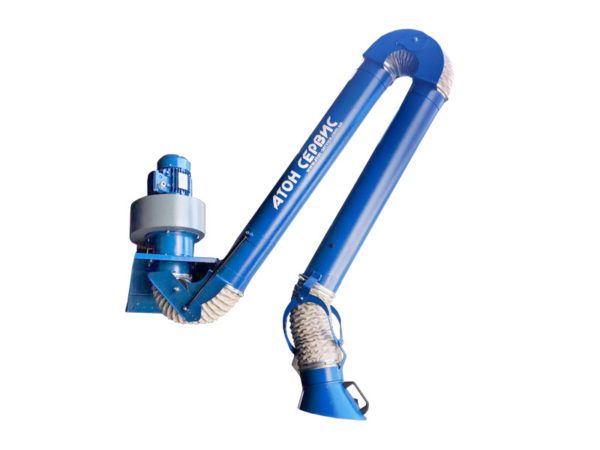

Rotating extraction unit for welding post PVU 160.04

SKU:
811013.0160
Stock:

On backorder

Extraction unit PVU is intended for the elimination of the different types of smokes, dust, gazes, sprays and other different fluids from the local source of fluid appearance, either as the part of extraction ventilation or as the autonomous unit in the workshop, in the enterprises of different spheres.

Additional information

ModelAir delivery, m³/hTotal pressure, PaPower, kWtA, mmB, mmH, mm
PVU 160.04

1300-2000

1000/730

1, 1/0, 75

3,795300820
ModelPVU 160.04
Air delivery, m³/h

1300-2000

Total pressure, Pa

1000/730

Power, kWt

1, 1/0, 75

A, mm3,795
B, mm300
H, mm820

Description

ModelAir delivery, m³/hTotal pressure, PaPower, kWtA, mmB, mmH, mm
PVU 160.04

1300-2000

1000/730

1, 1/0, 75

3,795300820
ModelPVU 160.04
Air delivery, m³/h

1300-2000

Total pressure, Pa

1000/730

Power, kWt

1, 1/0, 75

A, mm3,795
B, mm300
H, mm820

Extraction unit PVU is intended for the elimination of the different types of smokes, dust, gazes, sprays and other different fluids from the local source of fluid appearance, either as the part of extraction ventilation or as the autonomous unit in the workshop, in the enterprises of different spheres. Compact sizes and mobility make them an ideal solution for the medium enterprises. that need to provide the extraction of small and medium volumes of smoke in several zones of welding. Construction features and advantages: minimum resistance to the air flow; catches not less than 85% of the harmful substances directly from the source of their appearance; provides the possibility to regulate the air delivery, that goes through the unit; extraction unit of that serie can be rotated around the axle of the support for 180º; air inlet is rotated in every plane; easy to move and to fix in the nescessary position.

Options

Photo SKU Product name Product description Price
807160.0180 BFF 180 Deflector 166.42
811010.0000.04 CP pvu Control panel 97.00
811010.0000.02 DK 160 Choke 25.00
811010.0000.07 Ec 3m Console extension 3 m 208.00
811010.0000.08 Ec 4m Console extension 4 m 223.00
811010.0000.03 Lpvu+CP pvu Light+Control panel 139.00
906390.0602 MN-AS-602 Centrifugal blower 324.00
807070.0142 MN602 TR-RD 140 Passage 14.80
807100.0180 P-BD 180/90° Round pipe-bend 34.23
807060.0180 PP 180 Pipe 23.04
906330.0282 RM-AS 280 Centrifugal blower 590.00
807070.0237 RM280 TR-RD 237 Passage 16.00
811014.0160 TPR 160 Aspiration socket with magnets 127.00
807070.0173 TR-RD 173 Passage 2.50
