Construction of blades of side-channel blowers is based on the principle of side passages.
| Model | Power, kWt | Injection. Capacity Max, m³/hour | Injection. Pressure Max, mBar | Depression. Capacity Max, m³/hour | Depression. Pressure Max, mBar | Type | Motor | Noise, dB | Weight |
|---|---|---|---|---|---|---|---|---|---|
| SC902SF15T | 15 | 520 | 650 | 520 | 475 | Two stage | Three-phase | 74 | 120 kg |
| Model | SC902SF15T |
|---|---|
| Power, kWt | 15 |
| Injection. Capacity Max, m³/hour | 520 |
| Injection. Pressure Max, mBar | 650 |
| Depression. Capacity Max, m³/hour | 520 |
| Depression. Pressure Max, mBar | 475 |
| Type | Two stage |
| Motor | Three-phase |
| Noise, dB | 74 |
| Weight | 120 kg |
| Model | Power, kWt | Injection. Capacity Max, m³/hour | Injection. Pressure Max, mBar | Depression. Capacity Max, m³/hour | Depression. Pressure Max, mBar | Type | Motor | Noise, dB | Weight |
|---|---|---|---|---|---|---|---|---|---|
| SC902SF15T | 15 | 520 | 650 | 520 | 475 | Two stage | Three-phase | 74 | 120 kg |
| Model | SC902SF15T |
|---|---|
| Power, kWt | 15 |
| Injection. Capacity Max, m³/hour | 520 |
| Injection. Pressure Max, mBar | 650 |
| Depression. Capacity Max, m³/hour | 520 |
| Depression. Pressure Max, mBar | 475 |
| Type | Two stage |
| Motor | Three-phase |
| Noise, dB | 74 |
| Weight | 120 kg |

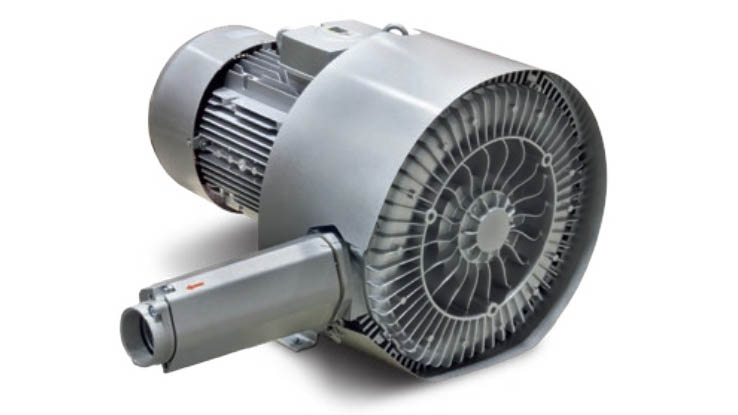

Construction of blades of side-channel blowers is based on the principle of side passages. Side-channel blowers are working both for vacuum and for compression and are intended for constant work. The impeller is installed directly on the shaft of the motor; all moving parts are balanced, ensuring the total absence of vibration. Casting construction provides maximum rigidness and easiness in usage.
Equipment is produced in Italy, corresponds to quality norms of EU.
